| Product name: | Fast connectors | Color: | Green |
|---|---|---|---|
| Connector: | SC APC | Length: | 55MM |
| Insertion cycle: | more than 1000 times | Application: | Telecom networks FTTX CATV |
| Insertion Loss:: | IL<0.2db | Return Loss:: | APC 60dB |
| प्रमुखता देना: | 60dB Fiber Optic Fast Connector,60dB SC APC SC APCConnector,60dB FTTH Fast Connector |
||

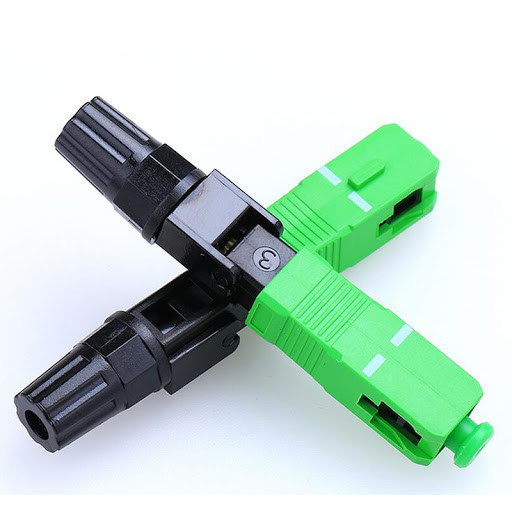

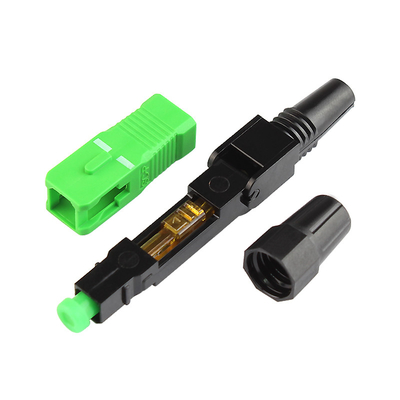

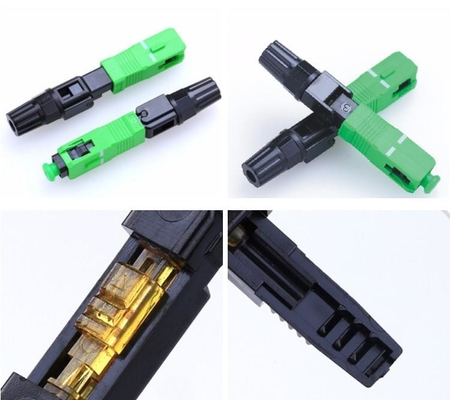

Telecom Networks FTTH SC APC 60dB Fiber Optic Fast Connector
FTTH SC APC fiber optic fast Connector / Field Pre-Assembly Optical Fast Connector
Introduction:
* Factory-installed fiber stub.
Application:
1. Local Area Network
2. Data communication network
3. Telecommunication optical transmission network
4. Optical access network(OAN)
5. Active device termination
6. CATV
7. Fiber optics data transmission(FODT)
Specification:
| Category | Specification | Remarks | |
| Aoolicable for | Drop cable.Indoor cable | ||
| Fiber mode | Single mode or Multi mode | ||
| Operation time | S | About 50(no fiber cut) | |
| Insertion Loss | dB | ≤0.5 | |
| Insertion Loss Typical value | dB | 0.3 | |
| Return Loss | dB | ≥50 | |
| Fastening strength of naked fiber | N | ≥5 | |
| Tensile strength | N | ≥50 | |
| Reusable | Time | ≥10 times | |
| Operating Temperature | ℃ | -40~+85 | |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 | |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 | |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 | |
