उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Type: | 1*2 1*4 1*8 1*16 1*32 | Package Type: | ABS Module |
|---|---|---|---|
| Fiber Module: | 9/125 um SMF-28e or customer appoint | Fiber Connector: | SC/LC/FC/ST |
| Insertion Loss: | 16.5dB | Input/Output Fi: | 0.9mm, 2.0mm, 3.0mm |
| प्रमुखता देना: | 16.5dB 1x32 Fiber Optic Splitter,16.5dB 1x32 Fiber Splitter,16.5dB 1x32 Optical Splitter |
||
Factory can product 1*2 1*4 1*8 1*16 1*32 ABS box type PLC Splitter with connector and without connector
Description:
CY COM offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications.
Customized designs are also available for customer needs, call or email us about anything you need that you don't see here. The PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications.
All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or email us about anything you need that you don't see here.
1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
Unconnectorized
Fiber jacketing outside boxes 2mm and up to 3mm
ABS box type or inside metal box/module cassette type
SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options
Custom connector configurations and combinations

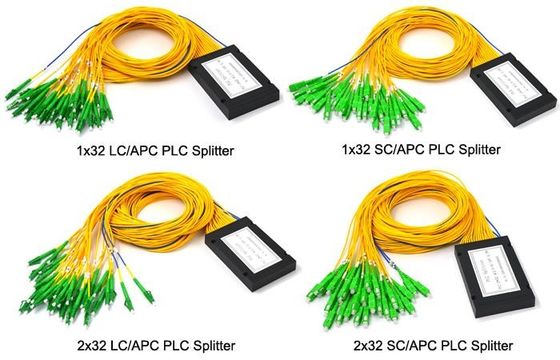

1x32 ABS Box Moudle PLC Splitter Applications:
Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
1x32 ABS Box Moudle PLC Splitter Features:
Low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
Telcordia GR-1221 and GR-1209
1x32 ABS Moudle PLC Splitter excludes connector loss
| TYPE | 1*32 | ||
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||
| Operating Wavelength(nm) | 1260~1650 | ||
| Insertion Loss(dB) | Typical | 16.2 | |
| Max | 17 | ||
| Loss Uniformity(dB) | Max | 2 | |
| Polariation Dependent Loss(dB) | Max | 0.3 | |
| Directivity(dB) | ≥55 | ||
| Return Loss (dB) | UPC:50 APC:55 | ||
| Operating Temperature (°C) | -40~+85 | Storage Temperature (°C) | |
1x32 ABS Moudle PLC Splitter includes connector loss
| TYPE | 1*32 | ||
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||
| Operating Wavelength(nm) | 1260~1650 | ||
| Insertion Loss(dB) | Typical | 16.5 | |
| Max | 17.5 | ||
| Loss Uniformity(dB) | Max | 2 | |
| Polariation Dependent Loss(dB) | Max | 0.3 | |
| Directivity(dB) | ≥55 | ||
| Return Loss (dB) | UPC:50 APC:55 | ||
| Operating Temperature (°C) | -40~+85 | Storage Temperature (°C) | |

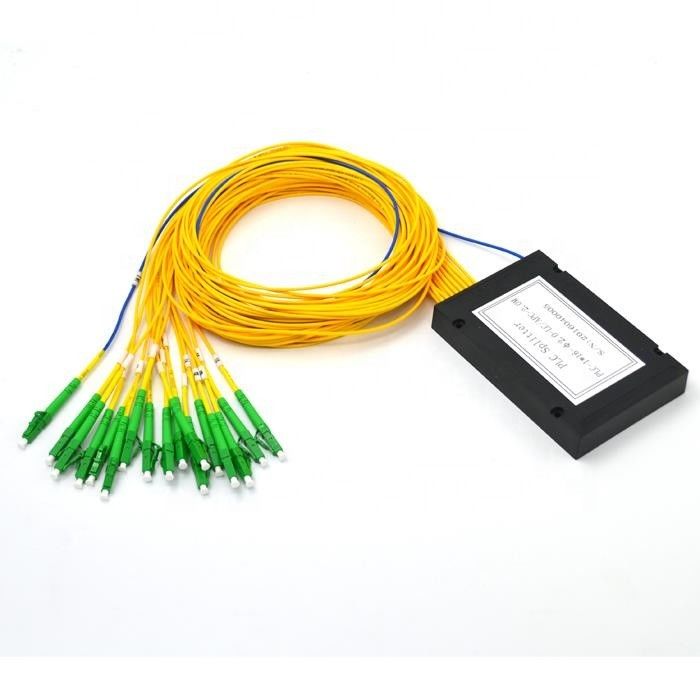

ABS PLC Splitter with LC/APC Connectors:
Our ABS Box type Fiber Optical PLC Splitter Packing way :
