| Model Type: | 1*8 0.9mm Mini Steel PLC Fiber Optic Splitter | Port Configuration: | 1x2,1x4,1x8,1x16,1x32,1x64 |
|---|---|---|---|
| Directivity: | ≥55dB | Fiber Type: | G657A1 or as customers' order |
| Operating Waveleng: | 1260~1650nm | Application: | FTTH FTTB FTTX PON CATV |
| प्रमुखता देना: | 1x8 Plc Fiber Optic Splitter,1x8 Plc Splitter,1x8 fiber optic plc splitter |
||

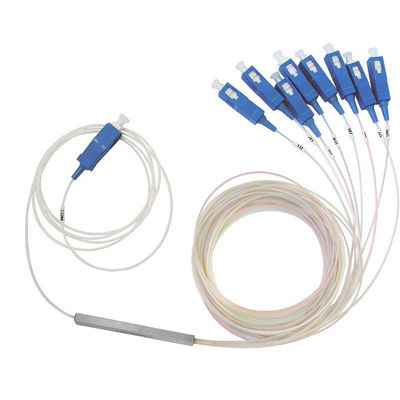

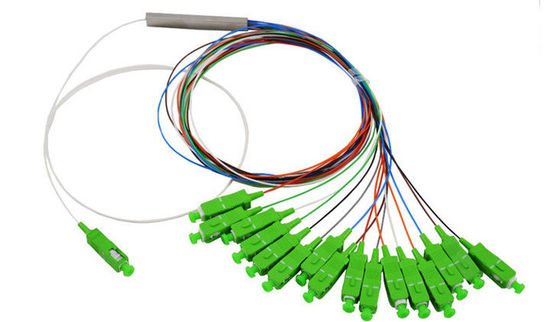

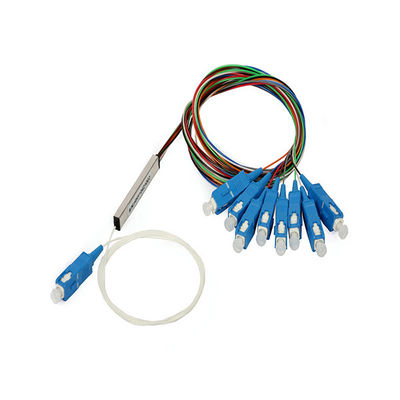

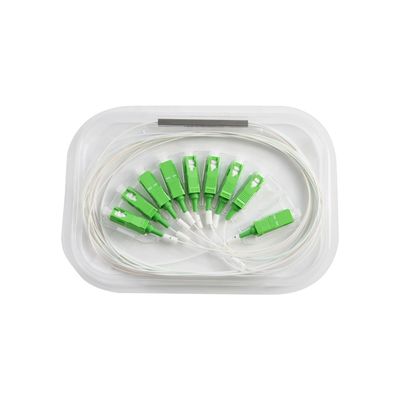

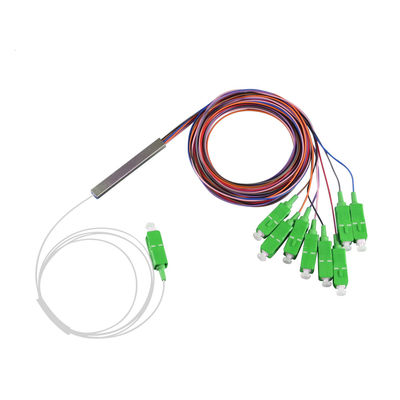

G657A1 UPC APC Connector 1x8 Plc Fiber Optic Splitter

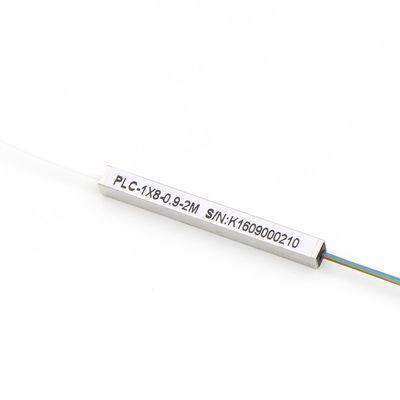

Manufacturing steel tube 1x8 plc splitter 8 way fiber optic splitter with UPC APC connector
Description:
Feature:
* Excellent Mechanical,Small Size
* High Reliability
* Low insertion Loss and low Polarization Dependent loss
* High channel counts
* Excellent Environmental Stability and Widely Used
Application
* FTTx Deployments(GPON/BPON/EPON)
* Cable television (CATV)
* Local area networks (LAN)
* Test equipment
* Passive optical networks(PON
Specification
|
1xN PLC Splitter Specification
|
|||||||
|
Operating Wavelength(nm)
|
1260~1650
|
||||||
|
Fiber Type
|
G657A1 or as customers' order
|
||||||
|
Port Configuration
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
1x128
|
|
Insertion Loss (dB)
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
23.8/24.2
|
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
2.5
|
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
0.4
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Temperature Dependent Loss (-40~85 ) (dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Return Loss (dB)
|
55/50
|
||||||
|
Operating Temperature
|
-40~+85
|
||||||
|
Directivity (dB)
|
≥ 55
|
||||||
|
Storage Temperature
|
-40~+85
|
||||||
|
2xN PLC Splitter Specification
|
|||||||
|
Operating Wavelength(nm)
|
1260~1650
|
||||||
|
Fiber Type
|
G657A1 or as customers' order
|
||||||
|
Port Configuration
|
2x2
|
2x4
|
2x8
|
2x16
|
2x32
|
2x64
|
2x128
|
|
Insertion Loss (dB)
|
4.0
|
7.6
|
11.0
|
14.4
|
17.5
|
21.0
|
24.5
|
|
Loss Uniformity (dB)
|
0.6
|
1.0
|
1.2
|
1.5
|
1.8
|
2.2
|
2.5
|
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.3
|
0.3
|
0.35
|
0.4
|
0.4
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Temperature Dependent Loss (-40~85 ) (dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Return Loss (dB)
|
55/50
|
||||||
|
Operating Temperature
|
-40~+85
|
||||||
|
Directivity (dB)
|
≥ 55
|
||||||
|
Storage Temperature
|
-40~+85
|
||||||
Order Information
PLC Splitter Type-----Input/Output -----Input Tube Type------Input Tube Length-----Output Tube Type-----Output Tube Length
