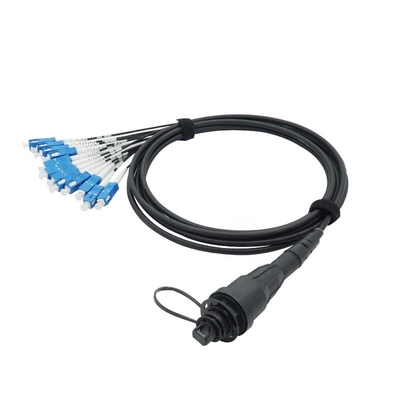

Outdoor 12 Core SC UPC 0.9mm 3M IP68 Fiber Optic Patch Cords

बड़ी छवि : Outdoor 12 Core SC UPC 0.9mm 3M IP68 Fiber Optic Patch Cords

उत्पाद विवरण:

Place of Origin:	Shenzhen
ब्रांड नाम:	CY COM
प्रमाणन:	ISO ROHS

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	10
Delivery Time:	5-10 work days
Payment Terms:	T/T, Western Union, MoneyGram, L/C

संपर्क करें

विस्तृत उत्पाद विवरण

Product name:	Fiber patch cord	Cable color:	Black or customized
length:	1m,2m,3m 100m or customized	Cable Dimension:	0.9mm, 2.0mm,3.0mm
Connector:	SC/UPC	Model:	Single Model
wavelength::	1310nm or 1550nm	Cable type:	G652D, G657A1,G657A,G657B3
प्रमुखता देना:	0.9mm 3M Fiber Optic Patch Cords , IP68 Fiber Optic Patch Cords , 12 Core SC UPC Patch Cords

Outdoor 12 Core SC UPC 0.9mm 3M IP68 Fiber Optic Patch Cords

Outdoor waterproof IP68 Tactical fiber

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Characteristics

* High Performance in IL & RL
* 4,8,12 and 24 fiber connector terminations and assemblies
* Designed for low loss and standard loss SM and MM applications
* Economical solution for mass-termination of fiber
* Suitable for MPO/MTP application
* Compliant to directive 200/95/EC(RoHS)
* MPO connector complies with IEC-61754-7

Application

Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
High performance optical network operation

Optical performance:

No. of cable			12	24
Fiber Model			G.657A1
Strength Member	Material		Aramid yarn
Tight buffer	Material		PVC
	Diameter(±0.06)mm		0.90
	Thickness(±0.03)mm		0.30
Outer Sheath	Material		TPU
	Color		Black
	Thickness(±0.1)mm		0.8	1.2
Cable Diameter(±0.2)mm			6.2	8.5
Cable Weight(±5)kg/km			35	68
Min. bending radius		Without Tension	10.0×Cable-φ
		Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)		Installation	-20~+60
		Transport&Storage	-40~+70
		Operation	-40~+70

Connector Type			Performance Level				Pull strength
Connector Type			Standard		Elite		Pull strength
Connector	Mode	Endface	IL(db)	RL(db)	IL(db)	RL(db)	(N)
LC/SC/FC/ST	SM	PC	≤0.2	≥50	≤ 0.15	≥50	≥68N
		UPC	≤0.2	≥55	≤0.15	≥55
		APC	≤0.2	≥60	≤0.15	≥60
	MM	PC	≤0.2	≥35	≤0.15	≥35
MPO/MTP	SM	APC	≤0.7	≥60	≤0.35	≥60	≥68N
MPO/MTP	MM	PC	≤0.5	≥20	≤0.35	≥20	≥68N
MIRJ	SM	PC	≤0.5	≥50	/	/	≥68N
MIRJ	MM	PC	≤0.5	≥35	/	/	≥68N

Quality Guarantee

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

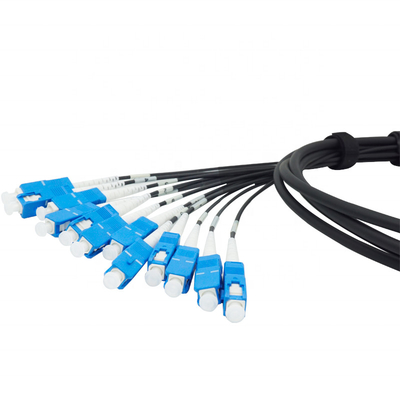

Product picture
